VX PlusPunkt – mobile radiographic inspection

with a compact tube head

VX PlusPunkt is a mobile X-ray system built in two robust cases for easy and safe transport. A supplied power station serves as the energy source, allowing operation anywhere without dependence on an external power supply. Thanks to its particularly compact, cable-connected tube head, it is possible to obtain images in areas that would otherwise only be accessible using isotopes. Compared to isotopes, the simplified handling and the reduced controlled area lead to a significant increase in productivity.

Mobile and independent

  • entire system can be carried by two people
  • portable powerstation enables 2 hours of exposure time, independent of any external power supply

Compact and lightweight

  • the small, cable-connected tube head fits into narrow and hard-to-reach spaces
  • with a weight of only 4 kg, the tube head can be attached with a strap, for example to a pipe to be inspected

Easy handling

  • turnkey system
  • no handling of hazardous materials (isotopes) required
  • smaller controlled area despite higher dose rate on film – resulting in fewer disruptions to ongoing production processes on site
  • no cooling pauses required thanks to a 100% duty cycle (optional)
  • modern safety features help prevent accidents

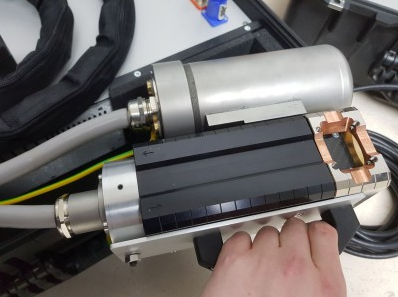

Compact and lightweight tube head
for use in confined spaces

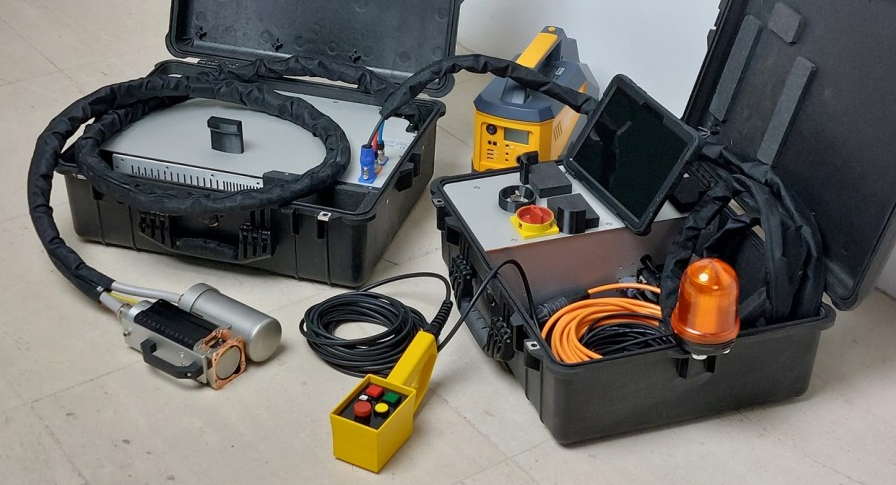

Complete PlusPunkt system

The system is configured using an industry-grade tablet and operated via a hand control panel.
The delivery includes:

Tube and generator case “Plus”

  • High-voltage generator
  • High-voltage cable
  • Tube head (X-ray tube)

Control electronics case “Punkt”

  • Safety electronics
  • Tablet for configuration
  • 360° beacon warning light
  • Hand control panel
  • Accessories

Powerstation for 2 hours of exposure time

  • Enables operation independent of a stationary power supply (optional)
  • Versatile in use
  • Variable in size and capacity

Further technical and sales information

If you have any further questions, we are happy to assist you using the following contact options:

Email:
Tel: +49 163 9135650 or +49 30 9653 4837
